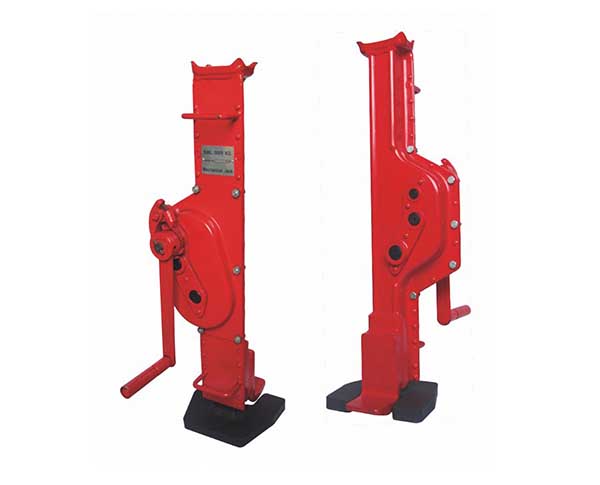

JQ-B 機械式千斤頂
* Double pawl brake system-quick braking,safe and reliable.* Low gearing tolerance-smooth transmissions,free of jerks.
* High efficiency and minimun turning force less than 25kgs is required to lift full load of all rated capacity.
* Sturdy structure,light weight and quick lift peformance material high quality CRS plate,carburized alloy steel gears.
* The Ableforge steel hack si designed and developed for heavy industrial lifting applications,strictly in accordance with the latest safety standard DIN 7355.
| 規(guī)格 Model | 1.5t | 3t | 5t | 10t | ||
| 額定載重量Rated capacity | t | 1.5 | 3 | 5 | 10 | |
| 試驗載荷 Test load | KN | 18.4 | 36.8 | 61.3 | 122.5 | |
|
滿載時的手搖力 Chain shake to lift full load |
N | 150 | 280 | 280 | 560 | |
| 行程 Stroke | mm | 300 | 350 | 350 | 410 | |
|
最低起升高度 Min.lifting height |
mm | F | 25 | 40 | 40 | 40 |
| H | 600 | 735 | 735 | 805 | ||
|

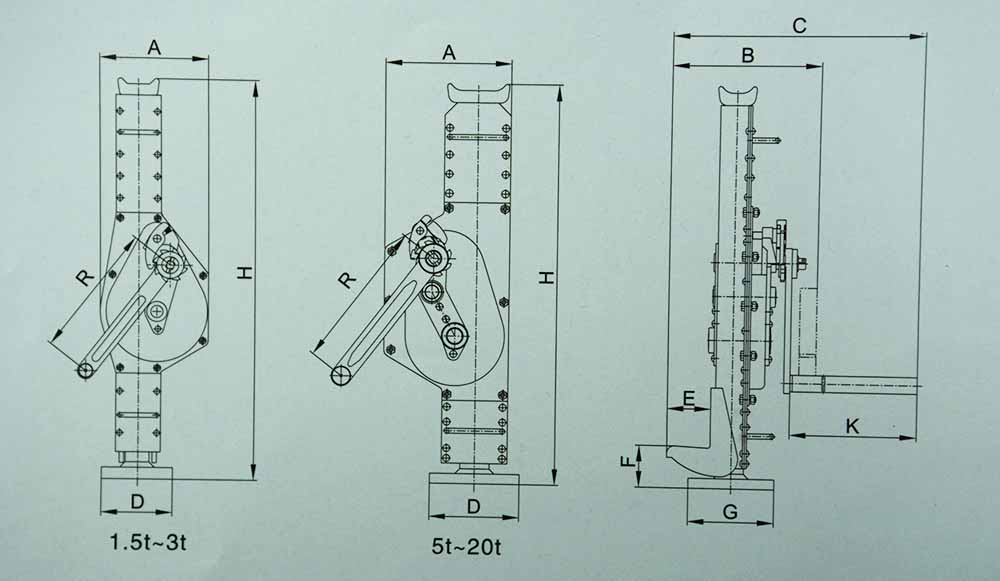

主要尺寸 mm Dimensions |
A | 163 | 197 | 189 | 250 | |
| B | 206 | 219 | 258 | 318 | ||
| C | 289 | 316 | 355 | 523 | ||
| D | 160 | 170 | 200 | 220 | ||
| E | 55 | 60 | 70 | 86 | ||
| G | 140 | 150 | 170 | 170 | ||
| K | 113 | 127 | 127 | 248 | ||
| R | 225 | 250 | 275 | 300 | ||
| 凈重 Net weight | kg | 14.8 | 23.3 | 31.3 | 49 | |
