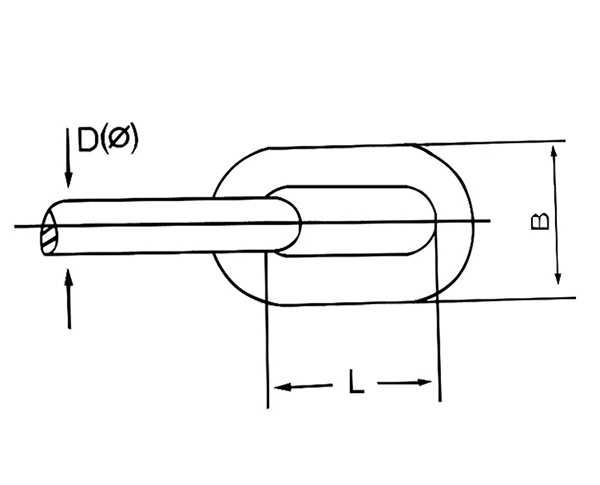

| Ordinary Decorative Link Chains | ||||||
| Diameter |
Outside Length |
Outside Width |
Breaking Load |
Approx. Weight |
Approx. Length |
|
| IN. | mm | mm | mm | kg | kg/m | m/50kg |
| 1/13 | 2 | 16 | 8 | 120 | 0.07 | 714 |
| 3/32 | 2.9 | 23 | 11.5 | 170 | 0.15 | 328 |
| 2/17 | 3 | 23 | 11.5 | 180 | 0.16 | 308 |
| 1/8 | 3.6 | 25 | 12.5 | 270 | 0.24 | 208 |
| 5/32 | 4 | 28 | 16 | 360 | 0.32 | 156 |
| 3/16 | 5 | 30 | 18 | 600 | 0.49 | 102 |
| 7/32 | 5.5 | 33 | 21 | 700 | 0.61 | 82 |
| 1/4 | 6 | 35 | 21 | 870 | 0.75 | 66 |
| 9/32 | 7 | 45 | 28 | 1050 | 0.97 | 51 |
| 5/16 | 8 | 47 | 30 | 1300 | 1.31 | 38 |
| 3/8 | 10 | 55 | 34 | 2200 | 2.04 | 24 |
| 1/2 | 12 | 70 | 42 | 3600 | 2.9 | 17 |
| 9/16 | 14 | 75 | 46 | 5200 | 4.7 | 12 |
| 5/8 | 16 | 91 | 56 | 6800 | 5.25 | 9.5 |
| 3/4 | 19 | 102 | 65 | 9000 | 7.59 | 6.5 |
| 7/9 | 20 | 103 | 66 | 9400 | 8.54 | 5.8 |
| 7/8 | 22 | 112 | 72 | 12000 | 10.4 | 4.8 |
| 1 | 25 | 140 | 87 | 15000 | 12.9 | 3.8 |
