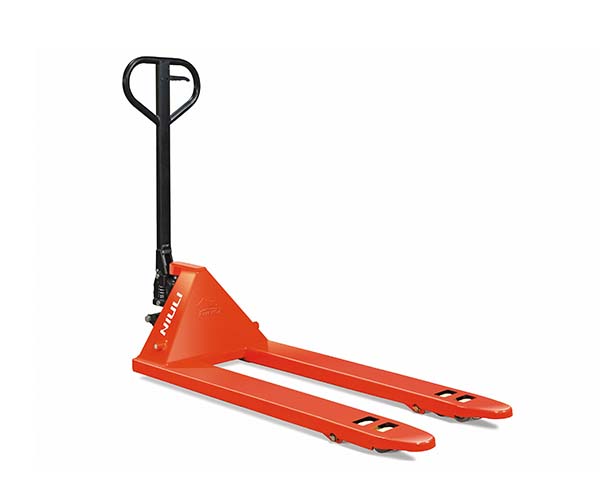

ACL低放型搬運(yùn)車
The low-profile pallet truck with 65mm lowered height，ideal for applications using low-clearance pallets and load ledges to maximise space.
Low profile fork frame.
Quality one-piece cast pump unit
Durable powder coat paint finish.
Ergonomic rubber handle.
High quality load wheels and rollers.
| Model | CBY-ACL 2.0T | CBY-ACL 2.5T | CBY-ACL 3.0T |
| Capacity(kg) | 2000 | 2500 | 3000 |
| Max.fork height(mm) | 175 | 175 | 175 |
| Min.fork height(mm) | 65 | 65 | 65 |
| Fork length(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| Width overall forks(mm) | 550/685 | 550/685 | 550/685 |
| Steering wheel(mm) | φ160x50 | φ160x50 | φ160x50 |
| Fork wheel(mm) | φ60x70 | φ60x70 | φ60x70 |
| Truck weight(kg) | 75-85 | 75-85 | 75-85 |
